Flexible Use Industrial And Commercial Photovoltaic Energy Storage System

An Industrial and Commercial Photovoltaic (PV) Energy Storage System integrates solar panels with high-capacity battery storage to deliver reliable, cost-effective power for factories, retail centers, hotels, and office parks. Designed to maximize renewable energy usage, reduce grid reliance, and enhance resilience, it bridges industrial-scale demand with commercial flexibility.

Products Description

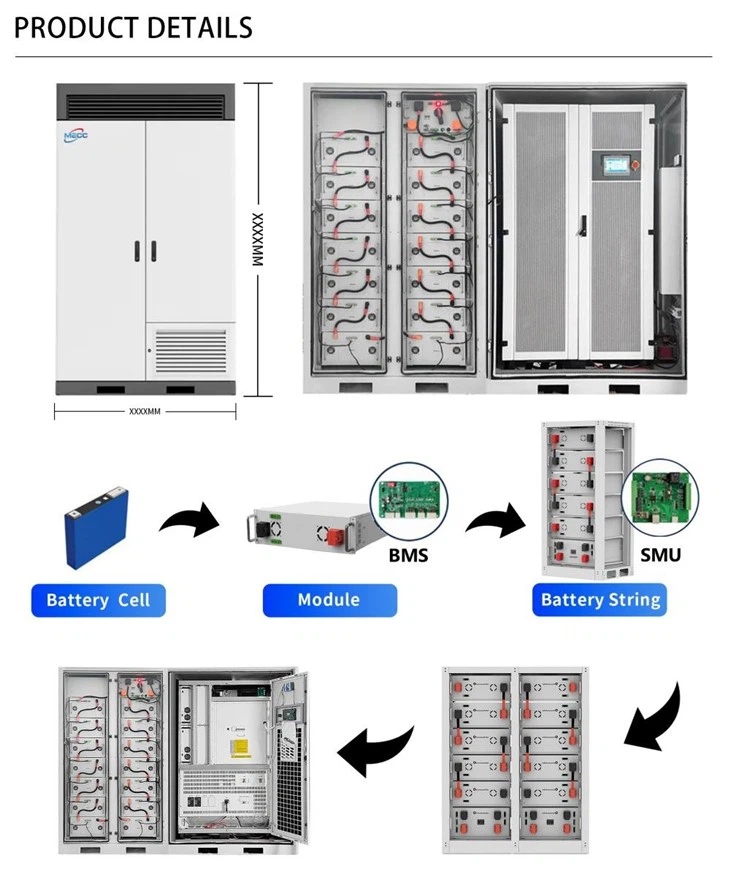

The 215KWH 768V 280AH High Voltage industrial commercial energy storage solution system with battery box container

1. High-Efficiency Solar + Storage Integration

Dual Energy Sources: Combines high-performance PV modules (22-23% efficiency) with LiFePO4 battery storage (280Ah cells, 768V architecture) to capture solar energy during the day and discharge it during peak hours or outages. Total system capacity ranges from 100kWh to 5MWh+, scaling to match industrial (factories) or commercial (malls) needs.

Maximized Self-Consumption: Boosts solar self-use from 50% (without storage) to 85%+ by storing excess PV energy for evening/night use, reducing grid electricity costs by 30–50% annually.

2. Industrial-Grade Durability for Heavy Use

280Ah LiFePO4 Batteries: Large-format cells engineered for 6,000+ cycles (15+ year lifespan) at 25°C, withstanding daily deep discharges (80% DoD) required for industrial machinery or commercial HVAC. Resist vibration (IEC 60068-2-6) and extreme temperatures (-30°F to 140°F), ideal for factory floors or rooftop installations.

Weatherproof PV Modules: Mono/polycrystalline panels with anti-reflective glass and aluminum frames, rated for 25+ years of outdoor use (withstand 160mph winds and 1.5-inch hailstones), ensuring long-term solar production.

3. Smart Power Management for Dual Sectors

Industrial-Focused Controls:

Peak Shaving: Discharges stored energy during high-tariff hours (e.g., 8 AM–6 PM) to cut demand charges-critical for factories where electricity costs $0.15–$0.30/kWh during peaks.

Load Matching: Aligns solar/storage output with machinery schedules (e.g., running compressors during midday solar production) to avoid grid overloads.

Commercial Optimization:

Time-of-Use Arbitrage: Charges batteries at off-peak rates (overnight) for commercial users (hotels, offices) to reduce daytime grid reliance.

Backup Power: Automatically switches to battery mode during outages, keeping POS systems, elevators, and refrigeration operational-preventing $10,000+/hour losses in retail.

Products parameter

BATTERY PACK 1P16S
RATED VOLTAGE	51.2V
NOMINAL CAPACITY	280AH
PACK POWER	14.336KWH
WEIGHT	130KG
BATTERY SYSTEM 1P224S
RATED VOLTAGE	716.8V
NOMINAL CAPACITY	280AH
RATED CURRENT	140A
BATTERY POWER	215KWH
VOLTAGE RANGE	627.2-806.4V
MAX EFFICIENCY	≥95%
OPTIMAL WORKING TEMPERATURE RANGE	-20°C-60°C
PROTECTION DEGREE	IP54
DIMENSION	225013001190MM
WEIGHT	2100KG
CERTIFICATES	CE, UN38.3,UL,ROHS, EMC, REACH
