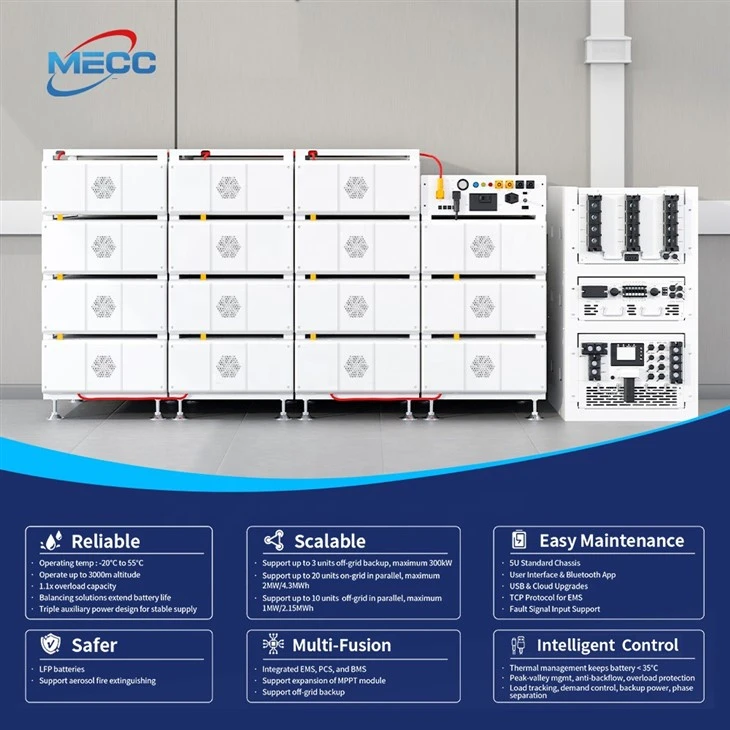

High Voltage Lithium Battery LiFePO4 314Ah 241kWh for Industrial UPS EPS Power Solutions
MECC High Voltage Battery 314AH, the epitome of safety and reliability in the world of energy storage. This cutting-edge lithium iron phosphate battery system is specifically designed to cater to the demanding needs of UPS, home storage, and industrial as well as commercial energy storage fields. Whether you're looking to secure uninterrupted power supply, optimize home energy consumption, or enhance industrial energy capabilities, this battery energy storage system delivers the solution you need with unmatched versatility and reliability.
Detailed Product Features:
1. High-Efficiency LiFePO₄ Battery Technology
Delivers a long lifespan, enhanced safety, and high energy density
Maintains a 90% Depth of Discharge (DoD) for maximum energy utilization
2. Discharge and Charge Control
Enhanced control mechanisms allow for efficient management of both charging and discharging processes, optimizing performance and extending battery life.
3. Standardized Module Design
The system's modular design promotes ease of installation and scalability, allowing for straightforward integration into various energy storage applications. Up to 15 battery racks can be managed in parallel.
4. Safe, Reliable, and Long Life
Built with safety at its forefront, our battery system offers unmatched reliability and longevity, ensuring peace of mind for all users.
5. Flexible Capacity
The system's design supports capacity expansion, enabling customization to meet specific energy requirements, providing a tailored solution for every user.
| Model | MECC-HV314 |
| Battery Module Energy | 16kWh |
| Battery Module Nominal Voltage | 51.2V |
| Battery Module Capacity | 314Ah |
| Module Weight Approximate | 122kg |
| Battery Module Qty In Series | 15(Optional) |
| Scalability | 5~15 |
| System Nominal Voltage | 51.2*15=768V |
| System Energy | 241kWh |
| System Usable Energy | 225kWh |
| Dimension (WxHxD) | 2150x1136x800mm |
| System Weight Approximate | 1850kg |
| IP Rating of Enclosure | IP20 |
| Warranty Period | 10 years |
| Certification | CE/IEC62619/IEC62040/UN38.3 |

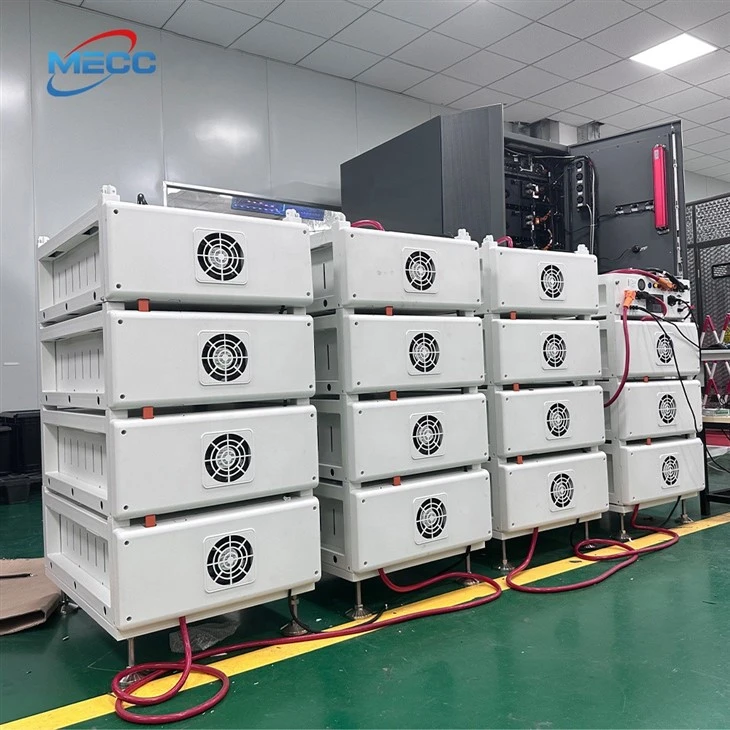

Cases
FAQ
Is the battery suitable for outdoor environments?
While the modules are often housed in IP54 or IP55 rated cabinets, the individual rack modules are typically IP20. For outdoor use, they must be installed in a climate-controlled enclosure.
What is the recommended operating temperature range?
For optimal performance and life, the charging temperature should be between 0°C to 45°C, and discharging between -20°C to 55°C.
How much space is needed for a 100kWh stacked system?
A 100kWh system would require approximately 6 modules. In a stacked configuration, this typically takes up less than 1 square meter of floor space.
Do these batteries require professional installation?
Yes. High-voltage systems involve significant DC voltages. Installation should always be performed by a certified electrician or ESS technician.
