8kw Solar Energy System America

Products Description 1~30KW Solar Energy Systems Solar power systems combine solar panels with other sources of electricity generation or energy storage to provide reliable power supply. These systems typically integrate solar panels with batteries for energy storage or with other renewable...

Products Description

1~30KW Solar Energy Systems

Solar power systems combine solar panels with other sources of electricity generation or energy storage to provide reliable power supply. These systems typically integrate solar panels with batteries for energy storage or with other renewable energy sources like wind turbines or diesel generators.

product-1000-451

Years Solar Panel

Years PV Racking

Years Battery

Years Inverter

One-stop service, including free system design, installation manual & instructions and videos, after-sales accessories, online technical support, etc.

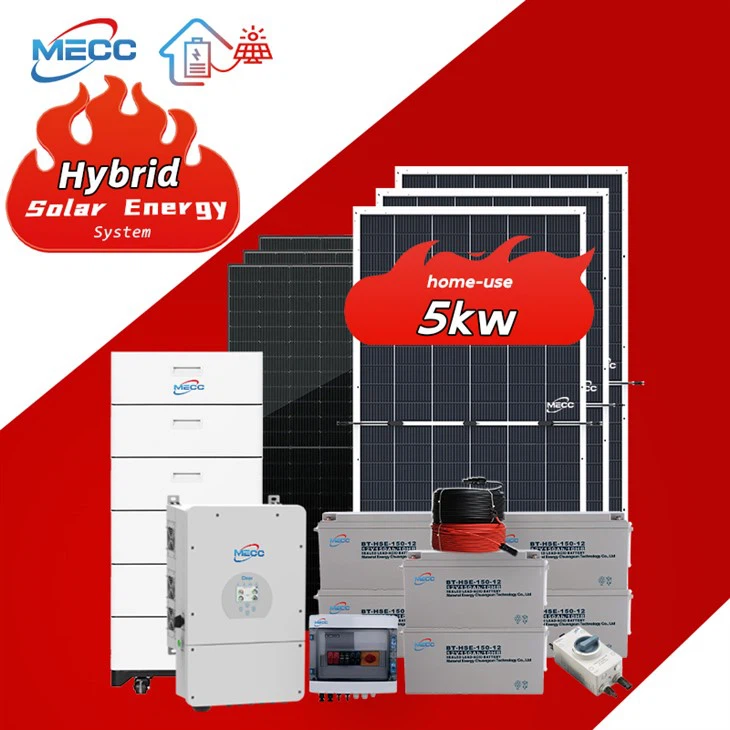

Home Use Hybrid Solar Energy Storage System
Item	Mecc-3kw	Mecc-5kw	Mecc-8kw	Mecc-10kw	Mecc-15kw	Mecc-20kw	Mecc-30kw
Mono Solar Panel 550W	6pcs	10pcs	16pcs	20pcs	30pcs	40pcs	60pcs
Hybrid Inverter/ Off-grid Inverter	110V/220V 220V 380V 50 - 60HZ Selectable 3KW 5KW 8KW 10kw 12kw 15kw 20kw 30kw Selectable
Panel Bracket	Ground mounts, roof mounts, a wide range of PV mounts to choose from
PV Combiner box	N in 1 out
MC4 Connector	4pairs		8pairs			16pairs
PV Cable	4M² 50M			4M² 100M
lithium Battery (power wall) (Can be added) (5KWH)	Lithium Battery Packs BMS/MBMS/EMS Protection; GEL/OPzV Batteries Optional
Cloud Monitoring System	1pcs

Hybrid System032

Half Cut Mono 550W Solar Panel

■ Adopt crystalline silicon solar cells with high conversion efficiency.

■ Multi-busbar technology.

■ Aluminum alloy frame: high strength and strong resistance to impact.

■ Able to withstand high wind and snow loads.

■ Adaptability to harsh environments.

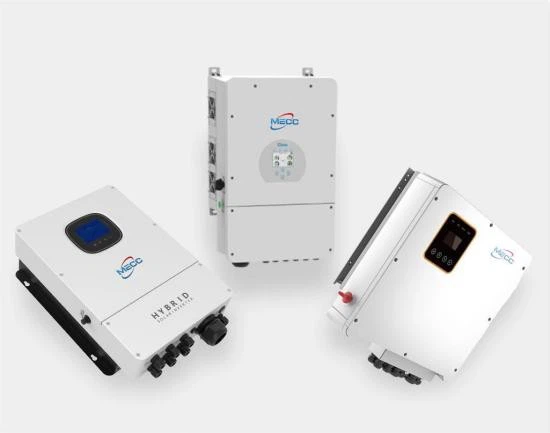

Solar Inverters

Efficient power generation

■ Efficient inverter topology

■ Advanced control algorithms
Intelligent management system

■ APP real-time cloud monitoring

■ Supports communication methods such as RS485, 4G, GPRS, WIFI, etc

Green friendly type
■ With small size and easy to install

■ Ultra wide working temperature range

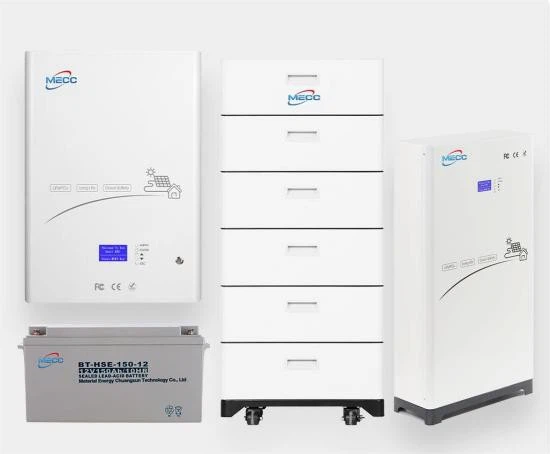

Batteries

■ High capacity：Parallel use of battery packs to meet the needs of large-capacity applications

■ Lithium or Gel Battery Optional

■ 24V 100AH/ 48V 100AH/ 48V 200AH ■ Optional LV 48V/51.2V and HV 192V/384V ■ 5--10 Years' Warranty Lithium Battery

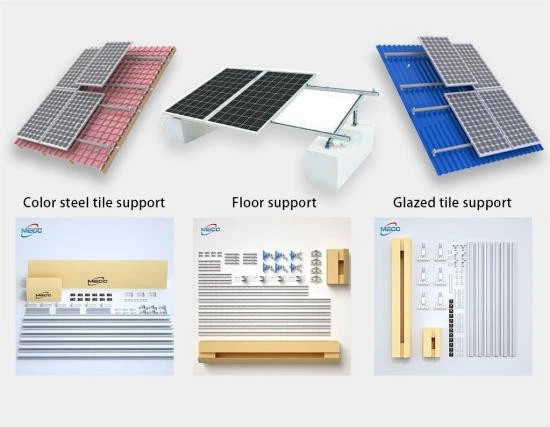

Photovoltaic Racking

■ A variety of brackets are available

■ Ground Bracket/Roof Brackets

■ 20 Years' Warranty Lithium Battery

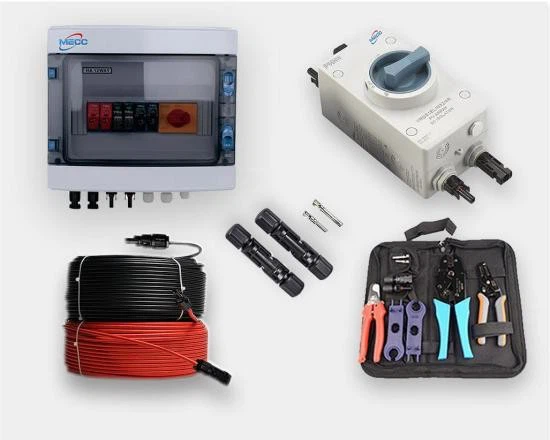

Accessory

■ Photovoltaic DC/AC Cable(4M²/6M²)

■ PV BOX ■ DC/AC Shutdown Switches

■ Photovoltaic kits

■ MC4 etc

product-1000-166

product-768-682

product-1088-682

product-1000-178

product-1800-885

product-1000-294

product-1000-164

Solar energy factories promote water conservation by providing an energy source that requires minimal water usage. This attribute is especially crucial in arid regions where water resources are limited.
